Free Weight Tribometer – NANOVEA T50

NANOVEA T50 is a free weight tribometer designed for friction and wear testing using dead-weight loading.

It enables rotational and linear tribological measurements with direct load application, providing stable, repeatable contact conditions without pneumatic regulation.

T50 is used as a reference-standard tribometer in research and industrial labs where mechanical simplicity, transparency of loading, and result comparability are critical.

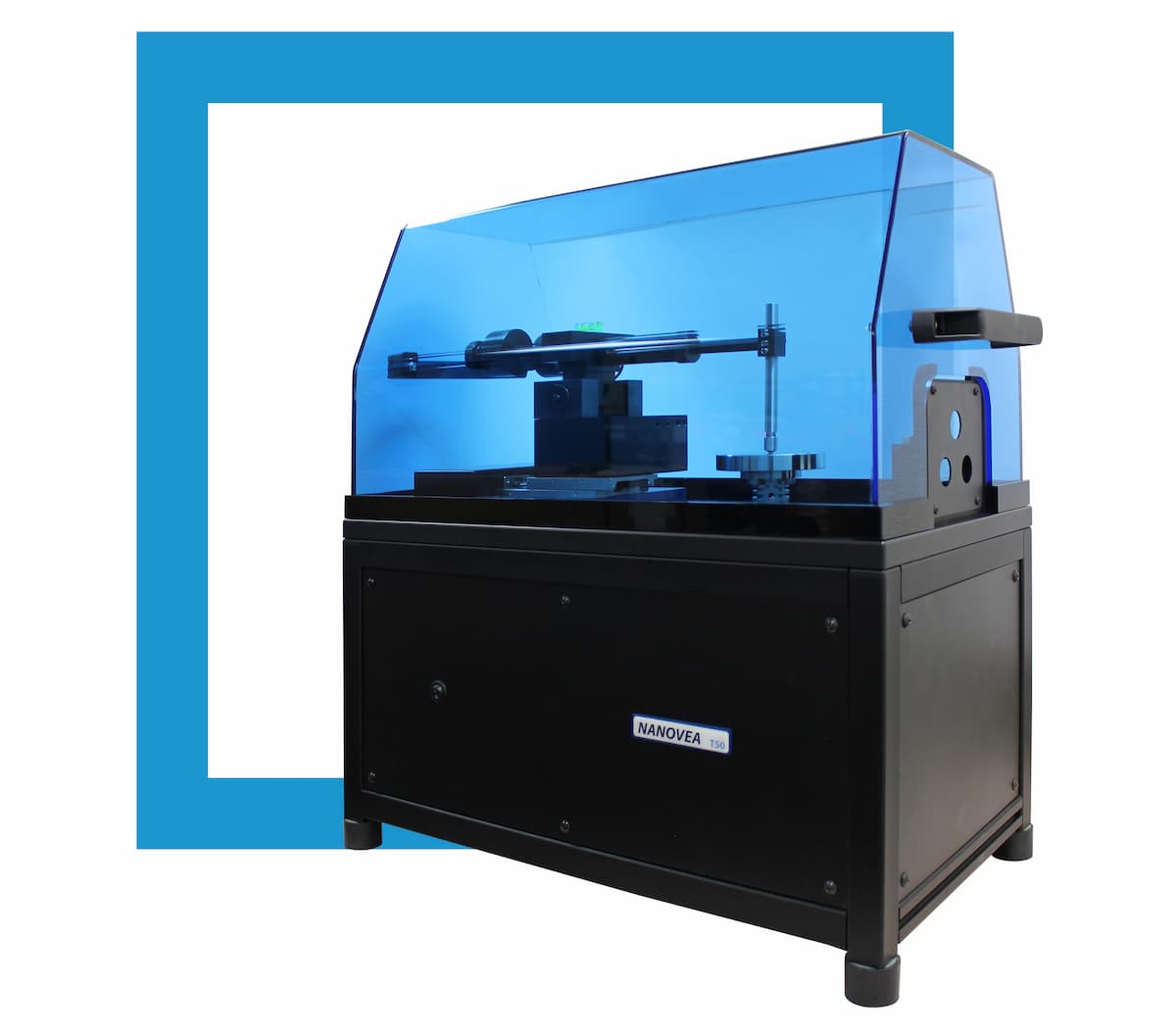

NANOVEA T50 free weight tribometer for friction and wear testing
NANOVEA T50 free weight loading tribology

SUPERIOR

MOTOR TECHNOLOGY

WIDEST SPEED RANGE

UNMATCHED SPEED CONTROL

w/ 20 bit internal speed encoder

ULTIMATE POSITIONING PRECISION

 w/ 16 bit external position

>0.006°​

STUDY OF QUASI STATIC COF

0.01 to 0.1 rpm

INSTANTANEOUS SPEED CHANGE

0 to 1000 rpm in 0.23 s

FRICTION & WEAR TESTING

NANOVEA Standard Modular Tribometer T50 provides testing solutions adhering to the industry standards. While advanced pneumatic technologies (available on T200 & T2000) paired with full automation push frontiers of tribology, traditional technologies can meet a wide range of applications.

Tribometer linear wear testing
Rotational wear test on a NANOVEA tribometer
STANDARD MODULAR TRIBOMETER

TESTING MODULES

Tribometer - Rotational Wear Test

ROTATIONAL

Tribometer linear wear test module

LINEAR

Tribometer - block on ring Wear Test

BLOCK-ON-RING

ENVIRONMENTAL MODULES

Tribometer Environment Modules - Corrosion Test

CORROSION

Tribometer Environment Modules - High Temperature Test

HIGH TEMP

Tribometer Environment Modules - Low Temperature Test

LOW TEMP

Tribometer Environment Modules - Liquid Test

LIQUID

Tribometer Environment Modules - Inert Gases Testing

HUMIDITY
& GASES

NANOVEA tribometer — longest warranty in the market

What is the NANOVEA T50?

The NANOVEA T50 is a compact free weight tribometer for friction and wear testing. Dead weights apply the normal load directly, up to 60 N, and an independent load cell measures friction. It runs rotational (pin-on-disk and ball-on-disk), linear reciprocating and block-on-ring tests to ASTM G99, ASTM G133, ASTM G77 and related standards.

A servo motor with a 20 bit internal speed encoder and 16 bit external position encoder (better than 0.006°) runs from 0.01 rpm, for quasi-static friction, to 5000 or 10000 rpm, and accelerates from 0 to 1000 rpm in 0.23 s. Environmental modules test from -150°C to 1000°C, in liquid to 150°C, at 10% to 90% humidity, in inert gas, in vacuum or in a tribocorrosion cell.

A simple, robust free weight design makes the T50 a reference instrument where transparent loading and comparability with published results matter.

Best for

  • Standard pin-on-disk wear testing to ASTM G99 and DIN 50324
  • Labs that want traditional dead-weight loading with modern speed control
  • Coatings, lubricants, polymers and metals at loads up to 60 N
  • Testing at high or low temperature, in liquid, humidity, gas or vacuum

T50 at a glance

Loading
Free weights, up to 60 N
Load resolution
10 mN
Friction force max | resolution
±20 N | 2.4 µN
Speed range
0.01 to 5000 | 10000 rpm
Max torque
4.4 Nm
Testing modules
Rotational, linear, block-on-ring
Temperature range
-150°C to 1000°C (module dependent)
Dimensions | weight
61 x 35 x 69 cm (benchtop) | 67 kg

T50 specifications

T50 specifications

Max testing load60 N
Load resolution10 mN
Frictional force max | resolution±20 N | 2.4 µN
Max torque4.4 Nm
20 bit speed & 16 bit position encodersIncluded
X motorized travel50 mm
Depth sensor range | resolution2 mm | 0.1 nm
Instrument dimensions61 x 35 x 69 cm (benchtop)
Weight67 kg

Specifications subject to change; contact NANOVEA for the latest.

Testing modules

SpecificationRotationalLinear
Max speed / stroke5000 | 10000 rpm25 mm stroke
Min speed / max frequency0.01 | 0.05 rpm60 Hz (up to 5 mm stroke)
Acceleration (0 to 1000 rpm)0.23 | 0.45 s—
Mounting area100 mm diameter disk62 x 76 mm
Optional modesReciprocating arc, spiral—
StandardsASTM G99, ASTM G132, DIN 50324ASTM G132, ASTM G133, ASTM F732

Values separated by | are alternative motor options. Block-on-ring module: ASTM G77.

Environmental modules

High temperature: mounting area78 mm²
High temperature: ball & sample max, rotational1000°C
High temperature: ball & sample max, linear900°C (higher on request)
Low temperature: air cooling module-40°C to RT
Low temperature: cryogenic module (liquid nitrogen)-150°C
Liquid: linear mounting area80 x 45 x 25 mm
Liquid: rotational mounting area (dia.)78 x 25 | 100 x 30 mm
Liquid heatingRT to 150°C
Humidity control10 - 90% / Td
Drop-by-drop lubricationAvailable
Corrosion (tribocorrosion)Linear module, max 40 N

Specifications subject to change. Every NANOVEA instrument is built to order; ask for the configuration that fits your samples.

What the T50 measures

Standards

  • ASTM G99
  • ASTM G132
  • ASTM G133
  • ASTM G77
  • ASTM F732
  • DIN 50324

Options and configurations

Pin geometries
Balls and cylinders of 3, 6, 10 and 25 mm in any material, custom sizes on request, and blocks for block-on-ring.
Environmental modules
High temperature to 1000°C, air cooling to -40°C, cryogenic to -150°C, liquid to 150°C, humidity 10% to 90%, inert gas, custom vacuum and tribocorrosion.
Depth sensor
Tracks height change during the test (2 mm range, 0.1 nm resolution) for in-situ wear rate.
Imaging and profilometry
1.3 MP digital camera up to 330x, endoscopic optical sensor for wear-track depth, and a 2D/3D chromatic optical profiler for wear volume.

Choosing between models

Related application notes

Studies from our laboratory on this class of instrument, published with full test parameters.

All related application notes →

Independent published research

At least 11 published studies name the T50 in their methods. NANOVEA instruments appear in 555 published studies on friction and wear, by researchers at universities and industrial laboratories worldwide.

All 555 studies →

T50: frequently asked questions

What is a free weight tribometer?

A tribometer that applies the normal load with dead weights on the pin or ball, rather than with a pneumatic or motorized actuator. The load is simple and transparent; on the T50 it reaches 60 N, with friction measured by an independent load cell.

Which tests does the T50 run?

Rotational pin-on-disk and ball-on-disk (ASTM G99, ASTM G132, DIN 50324, with reciprocating arc and spiral modes), linear reciprocating (ASTM G132, ASTM G133, ASTM F732) and block-on-ring (ASTM G77).

What speed range does the T50 cover?

From 0.01 rpm for quasi-static friction to 5000 or 10000 rpm depending on the motor option, accelerating from 0 to 1000 rpm in 0.23 s (0.45 s on the 10000 rpm option).

Can the T50 test at high temperature?

Yes. Ball and sample are heated to 1000°C on the rotational module and 900°C on the linear module (higher on request). Air cooling reaches -40°C and the cryogenic module -150°C.

T50 or T200?

Choose the T50 for dead-weight loading up to 60 N and standard rotational, linear and block-on-ring tests. Choose the T200 for programmable pneumatic loading to 200 N and scratch testing.
