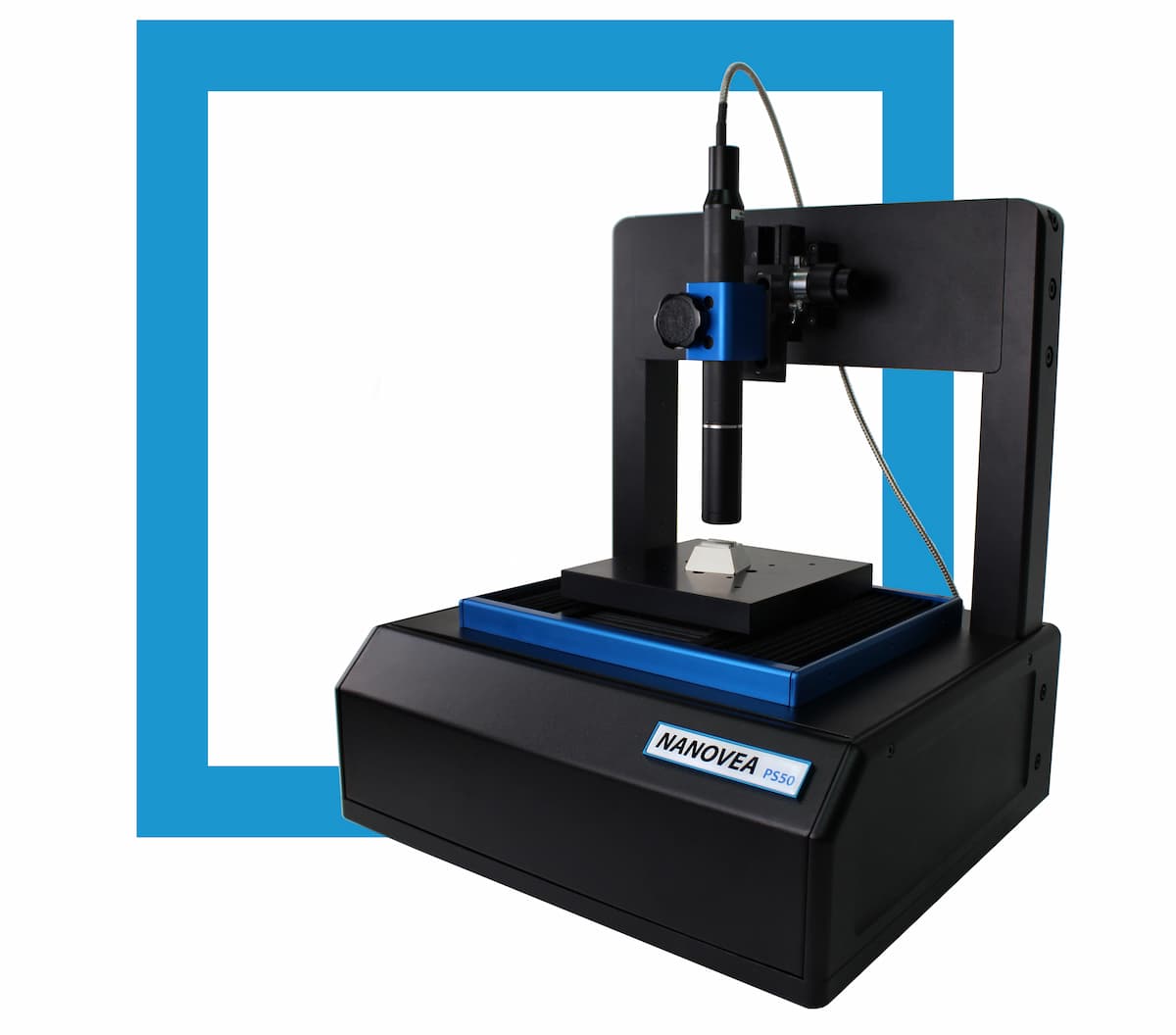

NANOVEA PS50 is a compact benchtop optical profilometer for non-contact surface measurement.
It uses NANOVEA’s chromatic light technology to measure surface topography with high vertical accuracy, making it well suited for routine surface characterization when space, simplicity, and cost matter.


AFFORDABLE INVESTMENT
All testing capabilities.
In a uniquely compact set-up.
At an affordable price.
SOPHISTICATED INSTRUMENT

SIMPLE DESIGN

X – Y Scan Area
50 x 50 mm Motorized

Height Range

Desktop Dimensions
38 x 33 x 43 cm

Scan Speed
20 mm/s

The NANOVEA PS50 is a compact benchtop 3D optical profilometer for non-contact surface measurement. It measures roughness, texture, form, step height, flatness and volume on samples up to 50 x 50 mm, using chromatic light sensors that work on transparent, reflective and dark materials without sample preparation.
Its motorized 50 x 50 mm X-Y stage scans at up to 20 mm/s, with a 30 mm manual Z axis. Six interchangeable sensors cover height ranges from 110 µm to 24 mm, with height repeatability down to 1.9 nm, 1 nm maximum vertical resolution and surface angles up to 87°. Each point's height is read directly from the reflected wavelength, so a 3D map needs no stitching, leveling or refocusing.
The PS50 is the entry point to NANOVEA's optical profiler range: the same sensors as the larger ST400 and ST500, on a 38 x 33 x 43 cm benchtop.
| X-Y stage travel | 50 x 50 mm, motorized |
|---|---|
| X-Y max speed | 20 mm/s |
| Z axis | 30 mm, manual |
| Measurement principle | Chromatic light (white light, non-contact), single point sensor |
| Max vertical resolution | 1 nm |
| Max surface angle | Up to 87° |
| Materials | Any material: transparent, reflective or dark |
| Benchtop dimensions | 38 x 33 x 43 cm |
| Specification | PS1 | PS2 | PS3 | PS4 | PS5 | PS6 |
|---|---|---|---|---|---|---|
| Max height range | 110 µm | 300 µm | 1.1 mm | 3.5 mm | 10 mm | 24 mm |
| Working distance | 3.3 mm | 10.8 mm | 12.2 mm | 16.5 mm | 26.6 mm | 20 mm |
| Lateral X-Y accuracy | 0.8 µm | 1.7 µm | 2.6 µm | 4.6 µm | 11.0 µm | 11.0 µm |
| Height repeatability | 1.9 nm | 5.4 nm | 15.8 nm | 31.6 nm | 117.0 nm | 237.2 nm |
Height repeatability: fixed point measurement on glass, Ra average height variation for 1,200 points (100 samplings).
Specifications subject to change. Every NANOVEA instrument is built to order; ask for the configuration that fits your samples.
Roughness & finish
Ra, Rz and ISO 25178 areal parameters, from one profile to a full 3D map.
Texture & grain
Lay, isotropy and texture direction across the scanned area.
Geometry & shape
Radius, angles, distances and contours from 2D profiles and 3D maps.
Step height & thickness
Steps and film thickness, including transparent films measured through the layer.
Flatness & warpage
Flatness and warpage over the full scanned area, not a single line.
Volume & area
Wear-track and pit volume, void and material volume, developed surface area.
ST400 modular profilometer
200 x 150 mm motorized stage at 40 mm/s, motorized Z, high-speed line sensor and rotational options.
ST500 large area profilometer
400 x 400 mm stage at up to 200 mm/s for large parts and automated inspection.
JR25 portable profilometer
5.3 kg, 25 x 25 mm stage and a rotating scanning head for measurements in the field.
Studies from our laboratory on this class of instrument, published with full test parameters.

A polycarbonate lens measured for radius of curvature, nanometer roughness and thickness, scratch hardness (ASTM G171), COF against five materials and linear wear rate.

Thickness and roughness of a metal coating on a silicon wafer measured as a step height with the NANOVEA PS50 non-contact profilometer: about 3.5 µm thick, Sa 0.1113 µm.

Cover layer thickness of a CD and a Blu-ray Disc measured through the transparent polycarbonate with a NANOVEA PS50: about 1125.0 µm and 102.3 µm, with BD far more uniform.

An optoelectronic film on a silicon wafer inspected with a NANOVEA PS50: a 24 µm surface bump sized by volume, two roughness zones resolved, and pass/fail roughness maps.

Corroded metal measured with a NANOVEA PS50: 89 mm³ volume loss and ~300 µm deep valleys on an eroded edge, and eight pits mapped for depth, volume and density on a pitted sample.

A transparent film on glass measured with a NANOVEA PS50: 57 µm thick by both step height and direct through-film measurement, with surface roughness Sa 0.691 µm.
At least 64 published studies name the PS50 in their methods. NANOVEA instruments appear in 444 published studies on surface topography and roughness, by researchers at universities and industrial laboratories worldwide.
Synthesis of Ultrathin WS2 Nanosheets and Their Tribological Properties as Lubricant Additives
Xianghua Zhang, Hongxiang Xu et al. · Nanoscale Research Letters, 2016
Measured with the NANOVEA PS50
Renxing Liang, Robert S. Grizzle et al. · Frontiers in Microbiology, 2014
Measured with the NANOVEA PS50
Durable Superhydrophobic Wood via One-Step Immersion in Composite Silane Solution
Junfei Ou, Guoqing Zhao et al. · ACS Omega, 2021
Measured with the NANOVEA PS50
Comparative abrasive wear resistance and surface analysis of dental resin-based materials
Maleeha Nayyer, Shahreen Zahid et al. · European Journal of Dentistry, 2018
Measured with the NANOVEA M1, PS50
The effect of glazing and aging on the surface properties of CAD/CAM resin blocks
Neslihan Tekçe, Sinan Fi̇dan et al. · The Journal of Advanced Prosthodontics, 2018
Measured with the NANOVEA PS50
Iron cycling at corroding carbon steel surfaces
Jason S. Lee, Joyce McBeth et al. · Biofouling, 2013
Measured with the NANOVEA PS50
Surface roughness and finish, texture, geometry and shape, step height and film thickness, flatness and warpage, and volume and area, in 2D and 3D, on samples up to 50 x 50 mm. Chromatic light works on transparent, reflective and dark materials, so metals, glass, polymers, coatings, composites and biological surfaces are measured the same way.
It depends on the sensor. Height repeatability runs from 1.9 nm with the PS1 (110 µm range) to 237.2 nm with the PS6 (24 mm range), and lateral accuracy from 0.8 µm to 11.0 µm. Maximum vertical resolution is 1 nm. Repeatability is a fixed point measurement on glass: the Ra height variation of 1,200 points over 100 samplings.
A chromatic light sensor splits white light into wavelengths that each focus at a different height, and reads the height directly from the wavelength reflected by the surface. No focus-finding algorithm is involved, lateral accuracy is set by the physical spot size rather than camera pixels, the white light needs no protective eyewear, and data are collected continuously, so large areas need no stitching of objective-sized tiles. See how chromatic confocal measurement works.
No. Measurement is non-contact and works on transparent, reflective and dark surfaces and on slopes up to 87°, with no coating, leveling or refocusing needed.
2D and 3D surface parameters to ISO 4287, ISO 13565, ISO 12085, ISO 12780, ISO 12181 and ISO 25178, plus other ISO and ASME standards.
Pricing depends on the sensors and configuration. Contact NANOVEA sales for a quote; our laboratory can measure your samples first so you can judge the results before you buy.
