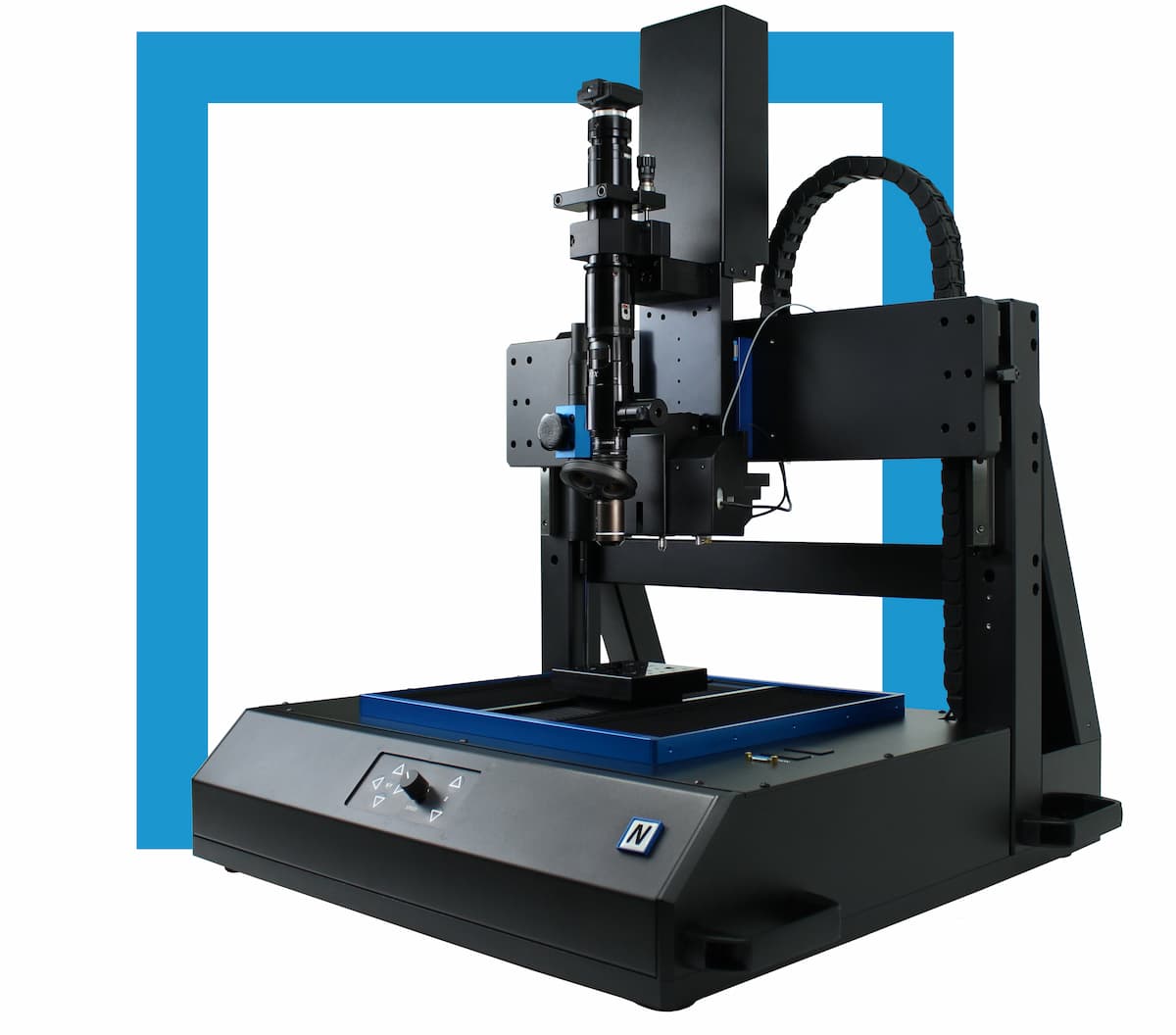

NANOVEA PB1000 is a modular mechanical tester combining nanoindentation, scratch testing, and friction measurement in a single system.
Designed for nano- and micro-scale materials testing, it enables hardness and elastic modulus measurement, creep and relaxation analysis, stress–strain characterization, scratch failure assessment, and coefficient of friction testing within one modular platform.
PB1000 supports advanced research in thin films, coatings, nanomaterials, and nanotechnology, where accuracy, repeatability, and room to grow are non-negotiable.


Provides the highest accuracy and repeatability with the widest range of measurements.
EVERYTHING YOU NEED IN ONE SYSTEM





The NANOVEA PB1000 is a large platform mechanical tester that carries both a nano module and a micro module on one system, for instrumented indentation, scratch, wear and friction testing from micronewton to 400 N loads. It measures hardness and elastic modulus, loss and storage modulus, fracture toughness, yield strength and fatigue, creep and relaxation, stress-strain, scratch adhesion and cohesion, scratch hardness, multi-pass wear and coefficient of friction.
Each module has independent load and depth sensors with true load control feedback and direct vertical loading (no cantilever or pivot point). The nano module uses a piezoelectric actuator with load ranges from 80 mN to 4800 mN and 0.003 nm depth resolution; the micro module uses a ball screw servomotor with load ranges from 20 N to 400 N. A 200 x 150 mm motorized stage, a 100 mm motorized Z stage and lateral accuracy below 0.2 µm handle a wide range of sample sizes.
A video microscope (up to 100x), a 3D optical profiler and an atomic force microscope can be integrated, and environmental modules test from below -40°C to 600°C, in controlled humidity or in liquid.
| X-Y motorized stages | 200 x 150 mm |
|---|---|
| X-Y lateral resolution | 0.1 µm |
| Lateral accuracy | < 0.2 µm with precision encoder |
| Z motorized approach | 100 mm |
| Load modules | Nano and micro modules, both on one system |
| Loading | Direct vertical loading, independent depth and load sensors, no cantilever or pivot point |
| Video microscope | Up to 100x objective, 1200 x 1600 color camera, < 0.2 µm accuracy to/from indenter position, stitching and focus stacking |
| 3D optical profiler | Up to 3 mm max Z range, down to 10 nm accuracy on any form, < 0.2 µm accuracy to/from indenter position |
| Atomic force microscope | 110 µm X-Y scan (25 µm high resolution), 1.7 nm lateral resolution, 0.4 nm | 0.13 nm height resolution, 22 µm | 5 µm max Z range |
| Specification | Nano module | Micro module |
|---|---|---|
| Modes of testing | Indentation, scratch, wear & friction | Indentation, scratch, wear & friction |
| Loading system | Piezoelectric actuator | Ball screw servomotor |
| Load sensor | Ultra precision load cell | Precision load cell |
| Load range | 80 | 400 | 1800 | 4800 mN | 20 | 40 | 200 | 400 N |
| Load resolution (24 bit) | 0.006 | 0.03 | 0.14 | 0.28 µN | 1.2 | 2.4 | 12 | 24 µN |
| Load noise floor RMS | 0.5 | 1 | 4 | 12 µN | 50 | 100 | 500 | 1000 µN |
| Depth sensor | Capacitor ring | Large area capacitor |
| Depth range | 250 | 1500 µm | 1 mm (extended range capability) |
| Depth resolution (24 bit) | 0.003 nm | 0.01 nm |
| Depth noise floor RMS | 0.04 nm | 0.15 nm |
| Friction sensor | Ultra precision load cell | Precision load cell |
| Friction range | 50 | 400 | 1800 mN | 20 | 200 N |
| Friction resolution | 0.004 | 0.14 | 0.28 µN | 1.2 | 12 µN |
| Friction noise floor RMS | 0.3 | 6 | 12 µN | 1.2 | 2 mN |
| Acoustic emission frequencies | 150 - 400 kHz | 150 - 400 kHz |
| Sensitivity of AE absolute energy | 0.005 aJ | 0.005 aJ |
| DMA / CSM frequencies | 0.1 to 100 Hz | N/A |
| Frequency & temperature sweep at constant load | Yes | N/A |
| FastMap | 5 min (100 indents) | 12 min (100 indents) |
| High temperature | 275° | 450°C | 275° | 450° | 600°C |
| Low temperature | Down to -10°C | <-40°C | Down to -10°C | <-40°C |
| Humidity | 5% to dew point | 5% to dew point |
| Liquid | RT to 60°C | RT to 60°C |
Values separated by | are alternative sensor or module options. Other acoustic emission frequency ranges available; nano only available under sample. Specifications subject to change; contact NANOVEA for the latest.
Specifications subject to change. Every NANOVEA instrument is built to order; ask for the configuration that fits your samples.
Hardness & elastic modulus
Nano and microindentation with Berkovich, Vickers, Knoop, cube corner or spherical tips.
Loss & storage modulus
Nano DMA and CSM, 0.1 to 100 Hz, with frequency and temperature sweeps.
Fracture toughness
Vickers and cube corner indentation cracks in ceramics, glass and coatings.
Yield strength & fatigue
Flat punch indentation for yield and ultimate strength, cyclic loading for fatigue.
Creep & relaxation
Depth change at constant load, load decay at constant depth.
Stress vs strain
Spherical and cyclic indentation, micro compression and bending.
Scratch adhesion (adhesive failure)
Critical loads of coating delamination with acoustic emission.
Cohesive failure & mar
Cracking and chipping within coatings and paints.
Scratch hardness
Constant-load scratch width to scratch hardness.
Multi-pass wear
Repeated sub-critical passes to progressive failure.
Coefficient of friction
Low-load sliding friction, dry or wet.
Environmental testing
High temperature, low temperature, humidity and liquid modules.
CB500 compact mechanical tester
Nano OR micro module on a compact base: 100 x 50 mm stage, 50 mm Z, lower maintenance cost.
T2000 high load tribometer
For wear and friction at loads up to 2000 N, plus scratch testing at loading rates up to 200 N/min.
AFM Pro
AFM and optical profilometry on a dedicated metrology platform.
Studies from our laboratory on this class of instrument, published with full test parameters.
See how controlled humidity affects polymer hardness and creep using nanoindentation, with measurements across relative humidity conditions from 25% to 75%.

Evaluate pacing lead insulation wear and friction in Hanks’ solution using low-load nano-friction and reciprocating tribology testing.

Nano scratch testing of drug-eluting stent coatings: critical loads, delamination and adhesion measured on stent struts and inside 30 µm deep grooves.

How NANOVEA mechanical testers evaluate the hardness, adhesion and wear resistance of phone screen protectors, using nano and micro scratch tests to find coating failure loads.

Nanoindentation DMA of natural and synthetic cork stoppers: Young's modulus, storage modulus, loss modulus and tan δ measured in axial and radial directions.

Nano scratch testing of a 7-year-old paint on metal: critical loads for initial and complete damage, true and residual depth, guided by ASTM D7187.
At least 18 published studies name the PB1000 in their methods. NANOVEA instruments appear in 438 published studies on indentation, hardness and scratch, by researchers at universities and industrial laboratories worldwide.
Flexible Polycaprolactone and Polycaprolactone/Graphene Scaffolds for Tissue Engineering
Stanislav A. Evlashin, Pavel V. Dyakonov et al. · Materials, 2019
Measured with the NANOVEA PB1000
Andrey Vladimirovich Smirnov, Svyatoslav Chugunov et al. · Materials, 2022
Measured with the NANOVEA PB1000
On manufacturing multilayer-like nanostructures using misorientation gradients in PVD films
Pedro Renato Tavares Ávila, Erenilton Pereira da Silva et al. · Scientific Reports, 2019
Measured with the NANOVEA PB1000
Birol Ay, Kushagra Parolia et al. · Communications Biology, 2020
Measured with the NANOVEA PB1000
Hanno C. Erythropel, Aurélie Börmann et al. · Polymers, 2018
Measured with the NANOVEA PB1000
Bruno C. N. M. de Castilho, Alisson Mendes Rodrigues et al. · Scientific Reports, 2022
Measured with the NANOVEA PB1000
The PB1000 carries the nano and micro modules together on one system, with a 200 x 150 mm stage, a 100 mm motorized Z stage and optional AFM and 3D profiler integration. The CB500 takes either the nano or the micro module on a compact base with a 100 x 50 mm stage and 50 mm Z. Module specifications are the same on both.
From the nano module's 80 mN range (0.006 µN resolution, 0.5 µN noise floor) to the micro module's 400 N range, about five orders of magnitude, on one instrument.
Yes. Both modules are installed together and support indentation, scratch, wear and friction. The nano module adds DMA/CSM from 0.1 to 100 Hz and frequency and temperature sweeps at constant load.
Instrumented indentation hardness and modulus per ISO 14577 and ASTM E2546, scratch adhesion per ASTM C1624, mar resistance per ASTM D7187 and scratch hardness per ASTM G171. Each method page lists the details.
Yes, up to 600°C with the micro module (450°C with the nano module), with tip and sample heated in an enclosed chamber. Low temperature (below -40°C), humidity (below 5% to dew point) and liquid (to 60°C) modules are also available.
Pricing depends on the modules, environmental options and imaging. Contact NANOVEA sales for a quote; our laboratory can run your test on your samples first.
