High Load Pneumatic Tribometer – NANOVEA T2000

NANOVEA T2000 is a high load pneumatic tribometer designed for friction, wear, and scratch testing under elevated normal force using actively regulated pneumatic loading.

It enables rotational, linear, and block-on-ring tribological measurements with precise load control across extended force ranges, supporting stable contact conditions under high-stress testing environments.

T2000 is intended for laboratories and industrial users requiring controlled high-load testing, advanced environmental integration, and repeatable stress-dominant measurements beyond the operating envelope of compact pneumatic systems.

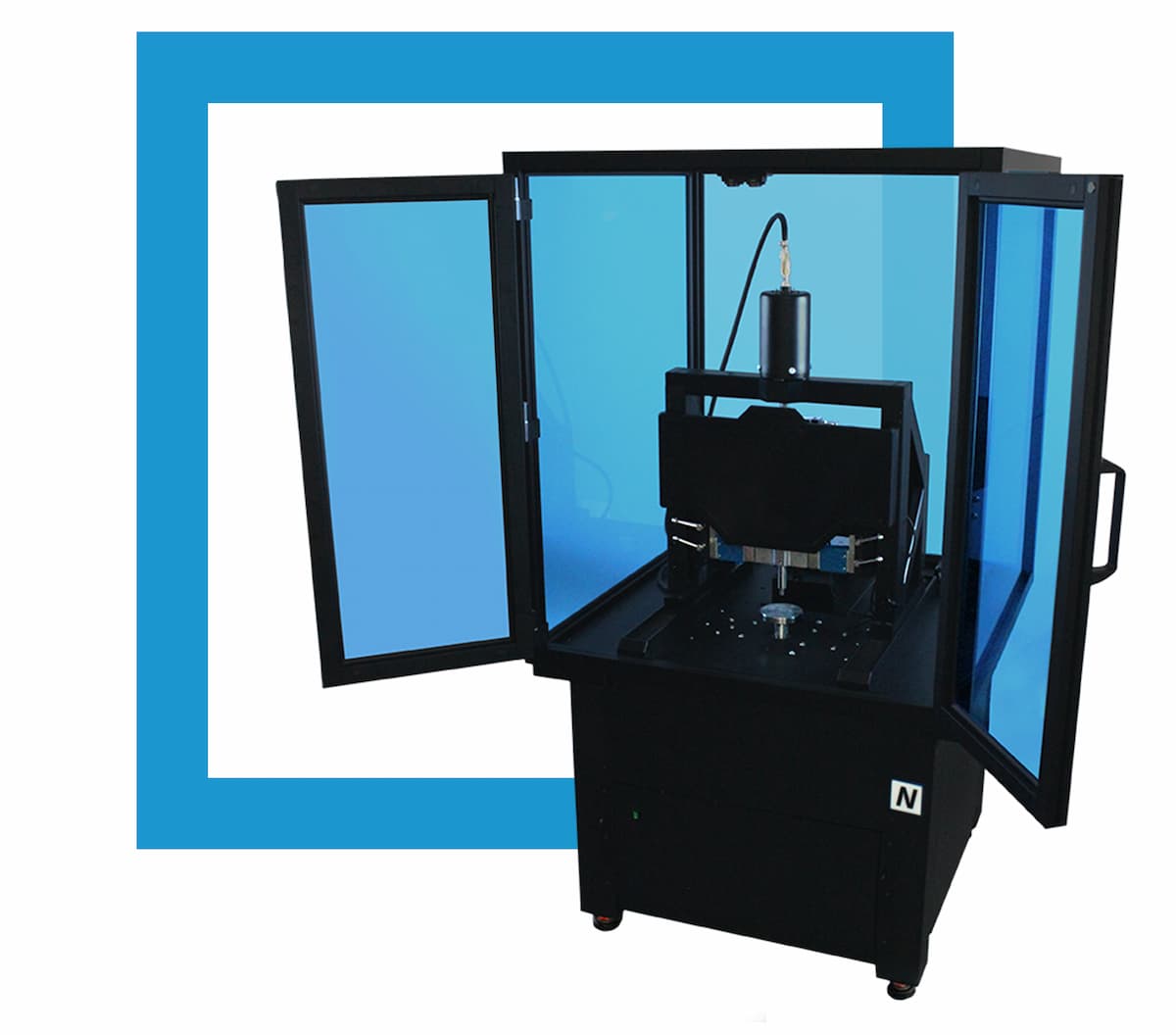

NANOVEA T2000 high load pneumatic tribometer for friction and wear testing

ADVANCED PNEUMATIC TRIBOMETER

LOADING TECHNOLOGY

SUPERIOR

MOTOR TECHNOLOGY

WIDEST SPEED RANGE

UNMATCHED SPEED CONTROL

w/ 20 bit internal speed encoder

ULTIMATE POSITIONING PRECISION

 w/ 16 bit external position

>0.006°​

STUDY OF QUASI STATIC COF

0.01 to 0.1 rpm

POWERFUL MAX INTERMITTENT TORQUE

up to 14.7 Nm

INSTANTANEOUS SPEED CHANGE

0 to 1000 rpm in 0.23 s

FRICTION, WEAR & SCRATCH TESTING

Tribometer linear wear testing
Rotational wear test on a NANOVEA tribometer

TESTING MODULES

Tribometer - Rotational Wear Test

ROTATIONAL

Tribometer linear wear test module

LINEAR

Tribometer - block on ring Wear Test

BLOCK-ON-RING

Tribometer Testing Module - Ring-on-Ring Testing

RING-ON-RING

Tribometer Testing Module - Scratch Testing

SCRATCH

ENVIRONMENTAL MODULES

Tribometer Environment Modules - Corrosion Test

CORROSION

Tribometer Environment Modules - High Temperature Test

HIGH TEMP

Tribometer Environment Modules - Low Temperature Test

LOW TEMP

Tribometer Environment Modules - Liquid Test

LIQUID

Tribometer Environment Modules - Inert Gases Testing

HUMIDITY
& GASES

High Load Pneumatic Tribometer
with 3D Non-Contact Profiler Integration

What is the NANOVEA T2000?

The NANOVEA T2000 is a high load pneumatic tribometer for wear, friction and scratch testing under normal loads up to 2000 N. It runs rotational (pin-on-disk), linear reciprocating, block-on-ring, ring-on-ring and scratch tests, to standards including ASTM G99, ASTM G133, ASTM G77, ASTM D3702 and ASTM C1624.

The motor reaches 5000 or 15000 rpm, down to 0.01 rpm for quasi-static friction, with up to 14.7 Nm of intermittent torque. A high-speed fatigue wear add-on superimposes dynamic mechanical loading of 0.2 to 20 N at up to 150 Hz on the pneumatic load, to simulate the effect of industrial vibrations on wear. Friction is measured up to ±1000 N with 6 µN resolution.

Stand-alone (101 x 101 x 188 cm, 202 kg), with 250 mm of X travel, an optional 100 mm Y axis, a 10 nm depth encoder, a 2 MP camera and standard or high-speed optical sensors that measure a full wear track in 3D.

Best for

  • High contact pressures: bearings, valves, pistons, brakes and heavy-duty coatings
  • Wear under vibration, with dynamic fatigue loading
  • High-speed tests up to 15000 rpm
  • Ring-on-ring (ASTM D3702) and block-on-ring testing
  • Automated multi-sample testing with full 3D wear-track measurement

T2000 at a glance

Loading
Pneumatic, up to 2000 N
Load resolution | noise floor
0.12 mN | 20 mN
Fatigue loading
0.2 to 20 N, up to 150 Hz
Friction force max | resolution
±1000 N | 6 µN
Speed range
0.01 to 5000 | 15000 rpm
Max torque
Up to 14.7 Nm
Testing modules
Rotational, linear, block-on-ring, ring-on-ring, scratch
Dimensions | weight
101 x 101 x 188 cm (stand-alone) | 202 kg

T2000 specifications

T2000 specifications

Max testing load2000 N
Load resolution0.12 mN
Load noise floor20 mN
Fatigue loading0.2 to 20 N (oscillation, up to 150 Hz)
Frictional force max | resolution±1000 N | 6 µN
Max torqueUp to 14.7 Nm
Encoders for speed | position21 bit | 16 bit
X motorized travel250 mm
Y motorized travel (optional)100 mm
Depth sensor range | resolution100 mm | 10 nm
Instrument dimensions101 x 101 x 188 cm (stand-alone)
Weight202 kg

Specifications subject to change; contact NANOVEA for the latest.

Testing modules

SpecificationRotationalLinearScratch
RangeMax 5000 | 15000 rpm, min 0.01 | 0.05 rpm25 mm max stroke50 mm max scratch length
Dynamics0 to 1000 rpm in 0.23 | 0.45 s60 Hz (up to 5 mm stroke)0.002 to 10 mm/s scratch speed
Mounting / loading100 mm diameter disk62 x 76 mm1 to 200 N/min loading rate
Optional modesReciprocating arc, spiral——
StandardsASTM G99, ASTM G132, DIN 50324ASTM G132, ASTM G133, ASTM G171, ASTM F732ASTM C1624, ASTM D7027, ASTM G171, ISO 20502, ISO 1518, DIN EN 1071, DVM-0058-PA

Values separated by | are alternative motor options. Block-on-ring: ASTM G77. Ring-on-ring: ASTM D3702.

Environmental modules

High temperature: mounting area78 mm²
High temperature: ball & sample max, rotational1000°C
High temperature: ball & sample max, linear900°C (higher on request)
Low temperature: air cooling module-40°C to RT
Low temperature: cryogenic module (liquid nitrogen)-150°C
Liquid: linear mounting area80 x 45 x 25 mm
Liquid: rotational mounting area (dia.)78 x 25 | 100 x 30 mm
Liquid heatingRT to 150°C
Humidity control10 - 90% / Td
Drop-by-drop lubricationAvailable
Corrosion (tribocorrosion)Linear module, max 40 N

Specifications subject to change. Every NANOVEA instrument is built to order; ask for the configuration that fits your samples.

What the T2000 measures

Standards

  • ASTM G99
  • ASTM G132
  • ASTM G133
  • ASTM G77
  • ASTM D3702
  • ASTM F732
  • ASTM C1624
  • ASTM D7027
  • ASTM G171
  • ISO 20502
  • ISO 1518
  • DIN EN 1071
  • DIN 50324
  • DVM-0058-PA

Options and configurations

High-speed fatigue wear add-on
Dynamic mechanical loading of 0.2 to 20 N at up to 150 Hz on top of pneumatic loading up to 2000 N, to simulate fatigue effects of industrial vibrations on wear.
Pin, indenter and ring geometries
Balls and cylinders of 3, 6, 10 and 25 mm, conico-spherical indenters of 200, 500 and 800 µm, blocks for block-on-ring and rings for block-on-ring or ring-on-flat.
Environmental modules
High temperature to 1000°C, air cooling to -40°C, cryogenic to -150°C, liquid to 150°C, humidity 10% to 90%, inert gas and tribocorrosion.
Wear-track measurement
A 10 nm depth encoder for in-situ wear, a 2 MP video zoom camera for full-length scratch images, and standard or high-speed optical sensors that measure a full wear track in 3D in seconds.

Choosing between models

Related application notes

Studies from our laboratory on this class of instrument, published with full test parameters.

All related application notes →

Independent published research

NANOVEA instruments appear in 555 published studies on friction and wear, by researchers at universities and industrial laboratories worldwide.

All 555 studies →

T2000: frequently asked questions

What is the T2000 used for?

Wear, friction and scratch testing at high contact loads, up to 2000 N, for materials and components such as bearings, valves, pistons, brakes, heavy-duty coatings and lubricants, including tests under vibration with the fatigue loading add-on.

What is fatigue wear testing on the T2000?

The high-speed fatigue wear add-on superimposes an oscillating load of 0.2 to 20 N at up to 150 Hz on the static pneumatic load, so wear can be measured under the kind of vibration seen in industrial machinery.

Which tests does the T2000 run?

Rotational pin-on-disk (ASTM G99, ASTM G132, DIN 50324), linear reciprocating (ASTM G132, ASTM G133, ASTM G171, ASTM F732), block-on-ring (ASTM G77), ring-on-ring (ASTM D3702) and scratch testing (ASTM C1624, ASTM D7027, ASTM G171, ISO 20502, ISO 1518, DIN EN 1071, DVM-0058-PA).

How fast does the T2000 rotate?

Up to 5000 or 15000 rpm depending on the motor option, down to 0.01 rpm (0.05 rpm on the 15000 rpm motor), with up to 14.7 Nm of intermittent torque.

What is the difference between the T2000 and the T2000MAX?

The T2000MAX is the high torque version: up to 54.0 Nm instantaneous torque instead of 14.7 Nm, with rapid air cooling and temperature monitoring, designed for brake friction testing. Load (2000 N) and footprint are the same.

How much does a T2000 cost?

Pricing depends on the motor, modules and add-ons. Contact NANOVEA sales for a quote.
