High Temperature Tribology Testing

The high temperature module encloses the tribological contact in a removable oven, so friction, wear and scratch tests run at controlled temperatures up to 1000 °C for rotational tests and 900 °C for linear tests. Materials that perform well at room temperature can soften, oxidise or change wear mechanism when hot. Testing at service temperature shows how they really behave.

High temperature oven module on a NANOVEA tribometer

At a glance

Temperature
Up to 1000 °C for rotational tests and 900 °C for linear tests.
Enclosure
A removable oven fully surrounds the sample and counterbody for a uniform, stable temperature at the contact.
Temperature reading
Thermocouple placed close to the contact point, or touching the back of the ball inside the ball holder.
Modules
Rotational, linear, scratch and ring-on-ring.
Atmosphere
Inert gas feed into the oven to limit oxidation.
Measurements
Friction, in-situ wear depth, scratch hardness, and wear rate from 3D profilometry after the test.

Why test at temperature

Engines, turbines, brakes, forming tools, furnace hardware and many coatings work hot. Their friction and wear at room temperature can be a poor guide to service: metals soften, polymers approach their glass transition or melting point, oxide layers form or break down, and lubricants and transfer films change. A material that ranks first at 20 °C can rank last at 600 °C.

High temperature tribology measures friction and wear at the temperature that matters, under the same controlled load, speed and contact geometry as a room-temperature test, so the effect of temperature can be isolated.

How the module works

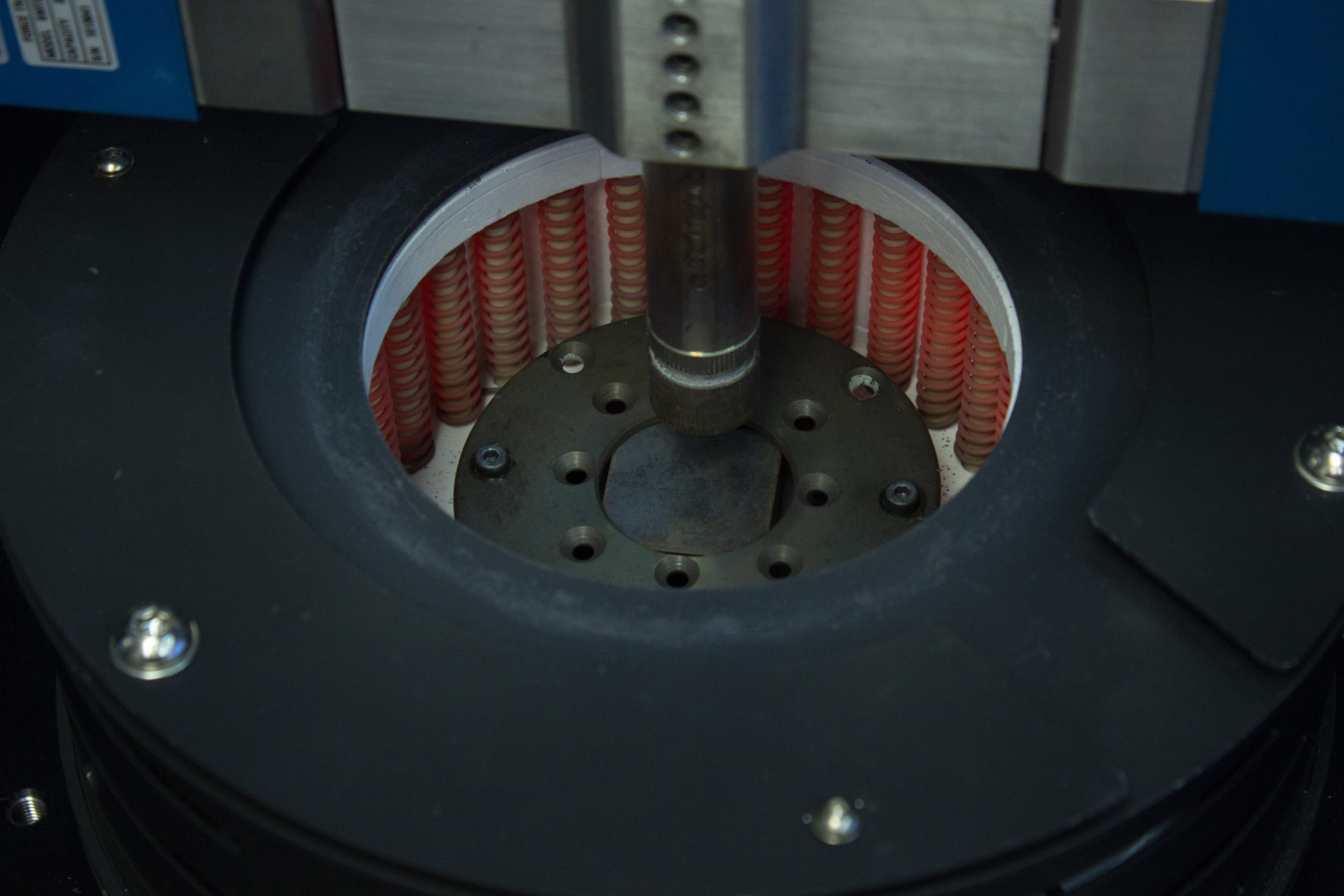

The contact is fully enclosed in a large removable oven, which keeps the temperature around the sample and counterbody uniform and stable. A thermocouple is set very close to the contact point, or directly against the back of the ball inside the ball holder, for the most representative reading. A heat sink on the main shaft of the rotational motor keeps the drive cool with an air supply while the oven is at temperature.

The oven reaches 1000 °C for rotational tests and 900 °C for linear tests, and works with the scratch and ring-on-ring modules as well. An inert gas feed can purge the oven.

Watching wear happen at temperature

Removing a sample to measure wear means letting it cool, which can change what you measure. With a depth sensor, the change in wear-track depth is recorded during the test at temperature. In NANOVEA’s in-situ high temperature study on alumina silicate ceramic, the depth record showed a different wear process at 400 °C and 800 °C. Depth rose quickly at first and then slowed, unlike the progressive wear at room temperature, and the track reached ~350 µm deep at 800 °C. The post-test profilometry agreed with the in-situ depth.

Friction is not the whole story

Temperature effects can show up in wear while friction looks unchanged, or the reverse:

  • In the ceramic study, COF stayed near 0.6 from room temperature to 800 °C, yet the wear rate rose to ~0.5 mm³/N·m at 800 °C, against below 0.2 mm³/N·m up to 400 °C.
  • In the brake pad study, friction itself was the signal. COF rose from ~0.2 to 0.26 near 350 °C, then the pads failed consistently above 500 °C, with COF falling to 0.05 by 580 °C. That fourfold drop from the room-temperature value is the kind of fade a brake system must be designed around.

Measuring both friction and wear rate at each temperature avoids drawing conclusions from only one of them.

Hardness and scratch resistance at temperature

The same heated environment supports mechanical tests. NANOVEA has published Brinell hardness of steel measured inside the T2000’s heated chamber with a 10 mm WC ball at 1000 N, falling 84% between 25 °C and 925 °C. On the T50, scratch hardness of Teflon was measured per ASTM G171 from room temperature to 300 °C, with the scratch width almost doubling as the polymer softened.

Measuring the wear rate

After the test, the wear track is measured by chromatic confocal 3D non-contact profilometry to obtain worn volume, and the specific wear rate K = V / (F × s) follows. Comparing K across temperatures gives a clear, quantitative picture of a material’s thermal limit.

Tests you can run at temperature

Instruments that run this test

Every instrument is built to order. Send us your samples and we run your test in our laboratory first, then configure the instrument around the result.

Published results

Measured in our own laboratory, on the instruments we design and build, and published with full test parameters.

All tribology application notes →

Independent published research

NANOVEA instruments appear in 13 published studies on high-temperature friction and wear, by researchers at universities and industrial laboratories worldwide.

All 13 studies →

NANOVEA materials testing laboratory

Need data at temperature? Send us your samples.

Our laboratory runs friction, wear, scratch-hardness and indentation tests at elevated temperature on the same instruments we build, and reports results with the full test parameters and temperature history.

Your samples are tested by the people who design the instruments, so you get advice on the method as well as the numbers.

Friction & wear lab services

Frequently asked questions

What temperatures can a NANOVEA tribometer test at?

With the high temperature module, up to 1000 °C for rotational tests and 900 °C for linear tests. At the other end of the range, a cold enclosure reaches -40 °C and a cryogenic adapter -150 °C.

How is the contact temperature measured?

The oven encloses the whole contact for a uniform temperature, and a thermocouple is placed either very close to the contact point or touching the back of the ball inside the ball holder. Frictional heating at the interface can raise the true contact temperature above the measured value, so the measurement location should be reported with the results.

Why does wear change at high temperature?

Temperature can soften a material, accelerate oxidation, change the composition and adhesion of transfer layers, or switch the dominant wear mechanism. Friction alone may not reveal this: in NANOVEA's ceramic study, COF stayed ~0.6 from room temperature to 800 °C while the wear rate more than doubled.

Can wear be monitored during a high temperature test?

Yes. A depth sensor (LVDT) records the change in wear-track depth during the test, so the stages of wear can be correlated with the friction record. The final wear track is then measured by 3D profilometry, and in the published study the two depth measurements agreed.

Can the oven be used with an inert atmosphere?

Yes. Inert gas can be fed into the oven to limit oxidation, which helps separate purely thermal effects from oxidative wear.

Which tests can be run in the high temperature module?

Rotational (pin-on-disk), linear reciprocating, scratch and ring-on-ring tests. NANOVEA has also published Brinell hardness measurements made inside the T2000's heated chamber up to 925 °C.
