OVERVIEW OF MICROINDENTATION

Microindentation is a powerful analytical technique that is frequently used in material science and engineering to quantify the mechanical properties of a variety of materials. It is a non-destructive method of measurement, which involves the use of a sharp, pointed probe to indent the surface of a sample material, with the force applied being carefully controlled. The resulting indentation is then measured to assess the material’s hardness, elastic modulus, and other mechanical properties. The technique has enabled scientists to better understand the mechanical behavior of a wide variety of materials, from metals and ceramics to polymers and composites. Whether you are studying the microstructure of materials or developing new materials with specific properties, microindentation is a valuable tool that can help you gain insights into a material’s mechanical behavior.

microindentation

Table of Contents

Got Questions?

Limitations of Traditional Indentation Tests

Indentation tests are commonly used to evaluate material properties, but traditional methods have their limitations. One of the key drawbacks is these tests often cannot accurately capture microscale deformations and can be influenced by surface roughness and other surface irregularities. This is where microindentation tests offer a more advanced solution. By using a much smaller indenter and specialized equipment, researchers can analyze microscopic regions of a material with greater accuracy. Additionally, microindentation allows for more flexibility in testing different types of samples, such as thin films or materials with complex surface geometries. While traditional tests still play an important role in material characterization, microindentation is becoming increasingly popular for precise, efficient analysis.

Advantages of Microindentation Testing

Microindentation is a valuable analytical method that allows researchers to measure the mechanical properties of materials with a high degree of precision. By applying a small, controlled force to the surface of a material and measuring the resulting indentation depth, scientists can gain insight into a material’s hardness, elastic modulus, fracture toughness, yield strength, and fatigue. One of its significant advantages is the ability to test materials under different environmental conditions such as high or low temperature, liquid immersion, or humidity/vacuum exposure. Another key advantage of microindentation is its versatility—it can be used to analyze a wide range of materials, from metals and ceramics to polymers and biological tissues. Additionally, microindentation testing is non-destructive, meaning that it can be performed on small or delicate samples without causing damage. These benefits make microindentation an essential tool for researchers across numerous scientific fields, from materials science and engineering to biomedicine and beyond. In the field of material science, microindentation testing is a crucial process that provides valuable insights into the mechanical properties of materials.

DISCOVER MICROINDENTATION TESTING
WITH NANOVEA MECHANICAL TESTERS

ADVANCED

Compact

MODULAR

LARGE PLATFORM

NANOVEA Microindentation Software Features

  • Recipes
  • Export Raw Data and Images
  • Real Time Display
  • Automatic Reporting
  • Multi-Language Support
  • Compare Curves and Results on Same or Multi Samples

NANOVEA Advanced Microindentation Automation

  • FastMap: Mapping of Hardness & Elastic Modulus (3 sec per indent)
  • Broadview Map Selection Tool: Advanced Mapping on stitched image
  • Automated multi-sample testing (handles height variance of up to 50mm
  • Navigation Plus: User Friendly surface navigation imaging
  • Quick Approach, Auto Surface Detection and Auto Analysis
  • Direct Easy Calibration Tools for Load & Depth
  • Single Indent Area Function (European Patent No. 3076153)
  • Quantifiable quality check for indenter (European Patent No. 3076153)
  • Wizard (Patent Pending): Automatic Test Parameter generator
  • Savable recipes of all macros programmed

Standards

Nanovea conducts scratch testing in compliance with established standards, ensuring accurate and reliable results for evaluating the mechanical properties of materials, while also offering tailored testing solutions designed for unique applications.

  • ASTM E384 – Standard Test Method for Microindentation Hardness of Materials
  • ASTM G171 – Standard Test Method for Scratch Hardness of Materials Using a Diamond Stylus
  • ASTM E2546 – Standard Practice for Instrumented Indentation Testing
  • ASTM B933 – Standard Test Method for Microindentation Hardness of Powder Metallurgy (PM) Materials
  • ASTM D4065 – Standard Practice for Plastics: Dynamic Mechanical Properties: Determination and Report of Procedures
  • ISO 14577 – Metallic materials — Instrumented indentation test for hardness and materials parameters
  • DIN 50359 – Universal Hardness Testing Of Metallic Materials – Calibration Of Reference Blocks
astm standards

Simulating Real-World Conditions

High and Low Temperature, Liquid, Humidity & Vacuum

HIGH TEMP

LOW TEMP

LIQUID

HUMIDITY

VACUUM

By subjecting materials to simulated environmental conditions, we can better understand how they will perform in real-world applications, helping us to design more durable and reliable products. Whether it is for aerospace, automotive, or other industries, microindentation testing is an essential component in ensuring that materials can stand up to the rigors of their intended use. Overall, the importance of microindentation testing in environmental conditions cannot be overstated, and plays a critical role in materials science research.

Measurement and Analysis Techniques in Microindentation

Microindentation is a widely used technique in materials engineering to measure mechanical properties like hardness, modulus of elasticity, and fracture toughness at the microscale level. There are several advanced techniques and equipment available for the measurement and analysis of microindentation data with high precision and accuracy. Some of the popular techniques include load-displacement curves, optical microscopy, finite element analysis, and machine learning algorithms. These techniques provide insights into the deformation behavior of materials and the underlying physics of the microindentation process. Additionally, the data generated by these techniques can be used to study the structure-property relationships of materials and aid in the development of new materials with tailored mechanical properties. Overall, the measurement and analysis techniques in microindentation have significant implications across various industrial and academic fields.

Hardness and Elastic Modulus

In microindentation testing, hardness and elastic modulus are two fundamental properties that are accurately measured by pressing a sharp indenter into a surface of a material. Hardness is derived from the material’s resistance to permanent deformation under the indenter’s load, and is an important indication of the material’s ability to resist wear and tear. Elastic modulus, on the other hand, measures how much a material deforms under load and how well it springs back when the load is removed. Understanding these two parameters can provide valuable insights into the mechanical behavior and performance of a material at the microscale level, which is essential for many fields ranging from material science to engineering.

Fracture toughness

Fracture toughness is a measure of the resistance of a material against crack propagation and is a fundamental property of material degradation, especially in applications where loading occurs over a wide range. Microindentation-based fracture toughness measurements are particularly useful in assessing the strength of brittle materials, such as ceramics and composites, which are prone to failure under stress. The fracture toughness measurement obtained through microindentation testing is a critical factor that contributes to the efficiency and safety of products in various applications, including electronics, aerospace, energy, and biomedical fields.

Yield Strength and Fatigue

Yield strength and fatigue are two critical material properties that can be evaluated using microindentation techniques. Yield strength is the stress level at which a material begins to deform plastically, causing permanent changes to its structure. Fatigue, on the other hand, refers to the weakening of a material over time due to repetitive loading and unloading cycles. Microindentation testing can also be used to measure the fatigue resistance of materials, making it a valuable tool for predicting the longevity of structures in various settings.

Creep and Relaxation

Creep refers to the time-dependent deformation of a material under a constant load or stress, while relaxation is the time-dependent decrease in stress or load required to maintain a given level of deformation. These phenomena are influenced by several factors such as temperature, strain rate, and the microstructural features of the material. Understanding creep and relaxation behavior is essential for predicting the durability and reliability of materials used in industries such as automotive, aerospace, and medical devices.

Stress and Strain Measurement

Stress and strain refer to the amount of deformation a material undergoes under different loads, and measuring these variables is crucial to the design of materials that withstand mechanical stress. By analyzing the force required to create a specified indentation depth, it is possible to determine a wide range of mechanical properties of the material. Microindentation testing is particularly useful for materials that are too small or too thin to be tested using traditional mechanical testing methods. Today, this technique is widely used in fields such as materials science, biomechanics, and microelectronics to better understand the behavior of materials at the microscale.

Indenter Types

Microindentation testing is a useful tool for researchers who want to measure the mechanical properties of small materials. By using different types of indenters, scientists can accurately determine the hardness and other properties of materials. Vickers and Berkovich indenters are commonly used to measure hardness and elastic modulus in various hard and soft materials. Vickers indenters are more resistant at higher loads, while Berkovich indenters offer more sensitivity for measuring thinner coatings. Cube corner indenters are useful for measuring fracture toughness at lower forces, while conico-spherical indenters are used for softer metals and plastics materials. The elongated Knoop indenter is useful for measuring directional differences in hardness for materials with fibers. Flat indenters are ideal for crushing small particles or measuring ultimate yield strength in various materials. Special knife diamond indenters are useful for testing failure in cylindrical parts like fiber optics. Each type of indenter has unique features, and researchers must choose the right one for their specific application to obtain accurate and precise data. Microindentation testing is a powerful method that can provide valuable analytical data for research purposes, enabling more precise measurements of material mechanical properties

Conclusion

Microindentation is a powerful and versatile technique that enables the measurement of various properties of materials such as hardness, elastic modulus, fracture toughness, and yield strength. The accuracy of results from microindentation, however, relies heavily on the selection of appropriate testing equipment, measurement techniques and analysis methods to achieve reliable results. Overall, microindentation has significant applications in engineering and material science that adds to our understanding of the mechanical behavior of materials. If you are interested in learning more about how this technique can be utilized for your particular application needs, reach out to our team today to chat with a knowledgeable representative. Our experienced staff will be able to answer all your questions and discuss product options specific to your requirements. Don’t wait any longer – contact us now!

OUR EXPERTS

ARE ALWAYS

ONE CLICK AWAY

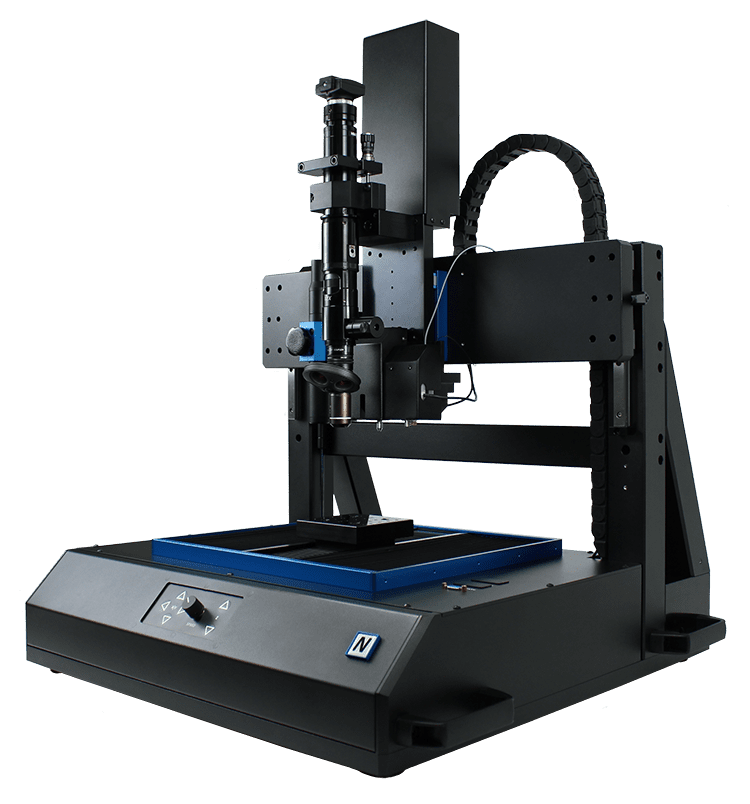

nanoindenter and scratch tester Nanovea PB1000
