Here are examples of materials we tested this month:

mechanical-lab
Mechanical:

Nanoscratch failure of micro rod coating
• Nanoindentation compression of microparticle
• Nanoindentation DMA of soft polymer
• Nanowear of implant
• Microindentation yeild strength engine part
• Micro scratch/mar of hard composite

profilometry-lab
3D Non-Contact Profilometry:

• Surface area of biomaterials
• Volume of micro nozzle
• Topography of adhesive
• Roughness of micro wire
• Roughness of thin films
• Texture of various rock samples
• Flatness of glass samples

tribology-lab
Tribology:

• Friction testing of liquid solution
• Wear resistance of porcelain
• Wear resistance of hard optical coatings
• Wear resistance of implant samples

Scratch Resistance of Microstructure using Scratch Testing

In this application, the Nanovea Mechanical Tester in its nano scratch testing mode is used to measure the load required to cause failure to a microstructure. We must simulate the process of scratching in a controlled and monitored manner to observe scratch resistance. A 10μm diamond tipped stylus is used at a progressive load ranging from 10 mN to 20 mN to scratch the microstructure. The point where the coating fails by cracking is taken as the point of failure.

Scratch Resistance of Microstructure using Scratch Testing

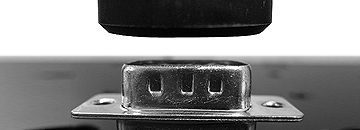

Connector Pin Inspection With 3D Profilometry

In this application, the Nanovea ST400 Profilometer is used to measure the full area of a connector surface and its pins. The application was chosen for its challenging features while highlighting the measurement options with Nanovea’s technique. There is an endless list surface parameters that can be automatically calculated after the surface scan. Here we will review a full 3D profile, flatness of the connector base, coplanarity of the pins and the roughness of a pin tip.

Connector Pin Inspection With 3D Profilometry
